ID3 algorithm

ID3 algorithm

The steps in ID3 algorithm are as follows:

  1. Calculate entropy for dataset.
  2. For each attribute/feature.

2.1. Calculate entropy for all its categorical values.

2.2. Calculate information gain for the feature.

  1. Find the feature with maximum information gain.
  2. Repeat it until we get the desired tree.



Use ID3 algorithm on a data

We'll discuss it here mathematically and later see it's implementation in Python.
So, Let's take an example to make it more clear.

Day

Outlook

Temperature

Humidity

Wind

PlayTennis

D1

Sunny

Hot

High

Weak

No

D2

Sunny

Hot

High

Strong

No

D3

Overcast

Hot

High

Weak

Yes

D4

Rain

Mild

High

Weak

Yes

D5

Rain

Cool

Normal

Weak

Yes

D6

Rain

Cool

Normal

Strong

No

D7

Overcast

Cool

Normal

Strong

Yes

D8

Sunny

Mild

High

Weak

No

D9

Sunny

Cool

Normal

Weak

Yes

D10

Rain

Mild

Normal

Weak

Yes

D11

Sunny

Mild

Normal

Strong

Yes

D12

Overcast

Mild

High

Strong

Yes

D13

Overcast

Hot

Normal

Weak

Yes

D14

Rain

Mild

High

Strong

No



Here,dataset is of binary classes(yes and no), where 9 out of 14 are "yes" and 5 out of 14 are "no".

Complete entropy of dataset is:

H(S) = - p(yes) * log2(p(yes)) - p(no) * log2(p(no))

     = - (9/14) * log2(9/14) - (5/14) * log2(5/14)

     = - (-0.41) - (-0.53)

     = 0.94



For each attribute of the dataset, let's follow the step-2 of pseudocode : -

First Attribute - Outlook

Categorical values - sunny, overcast and rain

H(Outlook=sunny) = -(2/5)*log(2/5)-(3/5)*log(3/5) =0.971

H(Outlook=rain) = -(3/5)*log(3/5)-(2/5)*log(2/5) =0.971

H(Outlook=overcast) = -(4/4)*log(4/4)-0 = 0



Average Entropy Information for Outlook –

I(Outlook) = p(sunny) * H(Outlook=sunny) + p(rain) * H(Outlook=rain) + p(overcast) * H(Outlook=overcast)

= (5/14)*0.971 + (5/14)*0.971 + (4/14)*0

= 0.693



Information Gain = H(S) - I(Outlook)

                 = 0.94 - 0.693

                 = 0.247



Second Attribute - Temperature

Categorical values - hot, mild, cool

H(Temperature=hot) = -(2/4)*log(2/4)-(2/4)*log(2/4) = 1

H(Temperature=cool) = -(3/4)*log(3/4)-(1/4)*log(1/4) = 0.811

H(Temperature=mild) = -(4/6)*log(4/6)-(2/6)*log(2/6) = 0.9179

Average Entropy Information for Temperature -

I(Temperature) = p(hot)*H(Temperature=hot) + p(mild)*H(Temperature=mild) + p(cool)*H(Temperature=cool)

= (4/14)*1 + (6/14)*0.9179 + (4/14)*0.811

= 0.9108



Information Gain = H(S) - I(Temperature)

                 = 0.94 - 0.9108

                 = 0.0292



Third Attribute - Humidity

Categorical values - high, normal

H(Humidity=high) = -(3/7)*log(3/7)-(4/7)*log(4/7) = 0.983

H(Humidity=normal) = -(6/7)*log(6/7)-(1/7)*log(1/7) = 0.591



Average Entropy Information for Humidity -

I(Humidity) = p(high)*H(Humidity=high) + p(normal)*H(Humidity=normal)

= (7/14)*0.983 + (7/14)*0.591

= 0.787



Information Gain = H(S) - I(Humidity)

                 = 0.94 - 0.787

                 = 0.153



Fourth Attribute - Wind

Categorical values - weak, strong

H(Wind=weak) = -(6/8)*log(6/8)-(2/8)*log(2/8) = 0.811

H(Wind=strong) = -(3/6)*log(3/6)-(3/6)*log(3/6) = 1



Average Entropy Information for Wind -

I(Wind) = p(weak)*H(Wind=weak) + p(strong)*H(Wind=strong)

= (8/14)*0.811 + (6/14)*1

= 0.892



Information Gain = H(S) - I(Wind)

                 = 0.94 - 0.892

                 = 0.048

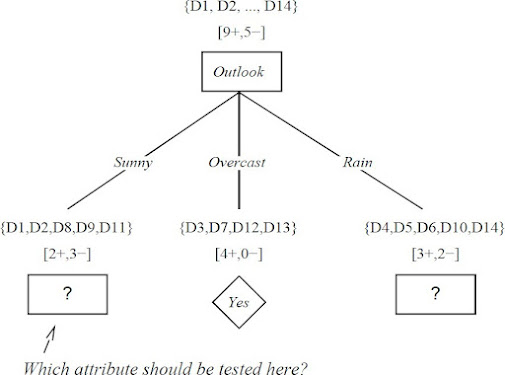

Here, the attribute with maximum information gain is Outlook. So, the decision tree built so far -

Here, when Outlook == overcast, it is of pure class(Yes).

Now, we have to repeat same procedure for the data with rows consist of Outlook value as Sunny and then for Outlook value as Rain.

Now, finding the best attribute for splitting the data with Outlook=Sunny values{ Dataset rows = [1, 2, 8, 9, 11]}.

Complete entropy of Sunny is -

H(S) = - p(yes) * log2(p(yes)) - p(no) * log2(p(no))

     = - (2/5) * log2(2/5) - (3/5) * log2(3/5)

     = 0.971



First Attribute - Temperature

Categorical values - hot, mild, cool

H(Sunny, Temperature=hot) = -0-(2/2)*log(2/2) = 0

H(Sunny, Temperature=cool) = -(1)*log(1)- 0 = 0

H(Sunny, Temperature=mild) = -(1/2)*log(1/2)-(1/2)*log(1/2) = 1

Average Entropy Information for Temperature -

I(Sunny, Temperature) = p(Sunny, hot)*H(Sunny, Temperature=hot) + p(Sunny, mild)*H(Sunny, Temperature=mild) + p(Sunny, cool)*H(Sunny, Temperature=cool)

= (2/5)*0 + (1/5)*0 + (2/5)*1

= 0.4



Information Gain = H(Sunny) - I(Sunny, Temperature)

                 = 0.971 - 0.4

                 = 0.571



Second Attribute - Humidity

Categorical values - high, normal

H(Sunny, Humidity=high) = - 0 - (3/3)*log(3/3) = 0

H(Sunny, Humidity=normal) = -(2/2)*log(2/2)-0 = 0



Average Entropy Information for Humidity -

I(Sunny, Humidity) = p(Sunny, high)*H(Sunny, Humidity=high) + p(Sunny, normal)*H(Sunny, Humidity=normal)

= (3/5)*0 + (2/5)*0

= 0



Information Gain = H(Sunny) - I(Sunny, Humidity)

                 = 0.971 - 0

                 = 0.971



Third Attribute - Wind

Categorical values - weak, strong

H(Sunny, Wind=weak) = -(1/3)*log(1/3)-(2/3)*log(2/3) = 0.918

H(Sunny, Wind=strong) = -(1/2)*log(1/2)-(1/2)*log(1/2) = 1



Average Entropy Information for Wind -

I(Sunny, Wind) = p(Sunny, weak)*H(Sunny, Wind=weak) + p(Sunny, strong)*H(Sunny, Wind=strong)

= (3/5)*0.918 + (2/5)*1

= 0.9508



Information Gain = H(Sunny) - I(Sunny, Wind)

                 = 0.971 - 0.9508

                 = 0.0202



Here, the attribute with maximum information gain is Humidity. So, the decision tree built so far -

maximum information gain is Humidity

Here, when Outlook = Sunny and Humidity = High, it is a pure class of category "no". And When Outlook = Sunny and Humidity = Normal, it is again a pure class of category "yes". Therefore, we don't need to do further calculations.

Now, finding the best attribute for splitting the data with Outlook=Sunny values{ Dataset rows = [4, 5, 6, 10, 14]}.

Complete entropy of Rain is -

H(S) = - p(yes) * log2(p(yes)) - p(no) * log2(p(no))

     = - (3/5) * log(3/5) - (2/5) * log(2/5)

     = 0.971



First Attribute - Temperature

Categorical values - mild, cool

H(Rain, Temperature=cool) = -(1/2)*log(1/2)- (1/2)*log(1/2) = 1

H(Rain, Temperature=mild) = -(2/3)*log(2/3)-(1/3)*log(1/3) = 0.918

Average Entropy Information for Temperature -

I(Rain, Temperature) = p(Rain, mild)*H(Rain, Temperature=mild) + p(Rain, cool)*H(Rain, Temperature=cool)

= (2/5)*1 + (3/5)*0.918

= 0.9508



Information Gain = H(Rain) - I(Rain, Temperature)

                 = 0.971 - 0.9508

                 = 0.0202



Second Attribute - Wind

Categorical values - weak, strong

H(Wind=weak) = -(3/3)*log(3/3)-0 = 0

H(Wind=strong) = 0-(2/2)*log(2/2) = 0



Average Entropy Information for Wind -

I(Wind) = p(Rain, weak)*H(Rain, Wind=weak) + p(Rain, strong)*H(Rain, Wind=strong)

= (3/5)*0 + (2/5)*0

= 0



Information Gain = H(Rain) - I(Rain, Wind)

                 = 0.971 - 0

                 = 0.971

Here, the attribute with maximum information gain is Wind. So, the decision tree built so far -

maximum information gain is WindHere, when Outlook = Rain and Wind = Strong, it is a pure class of category "no". And When Outlook = Rain and Wind = Weak, it is again a pure class of category "yes".

And this is our final desired tree for the given dataset.



What are the characteristics of ID3 algorithm?

Characteristics of ID3 Algorithm are as follows:

  1. ID3 uses a greedy approach that's why it does not guarantee an optimal solution; it can get stuck in local optimums.
  2. ID3 can overfit to the training data (to avoid overfitting, smaller decision trees should be preferred over larger ones).
  3. This algorithm usually produces small trees, but it does not always produce the smallest possible tree.

ID3 is harder to use on continuous data (if the values of any given attribute is continuous, then there are many more places to split the data on this attribute, and searching for the best value to split by can be time consuming).
