What is BUS?

Bus: The electrically conducting path along which data is transmitted inside any digital electronic device. A Computer bus consists of a set of parallel conductors, which may be conventional wires, copper tracks on a PRINTED CIRCUIT BOARD, or microscopic aluminum trails on the surface of a silicon chip. Each wire carries just one bit, so the number of wires determines the largest data WORD the bus can transmit: a bus with eight wires can carry only 8-bit data words, and hence defines the device as an 8-bit device.

computer bus normally has a single word memory circuit called a LATCH attached to either end, which briefly stores the word being transmitted and ensures that each bit has settled to its intended state before its value is transmitted.

The Computer bus helps the various parts of the PC communicate. If there was no bus, you would have an unwieldy number of wires connecting every part to every other part. It would be like having separate wiring for every light bulb and socket in your house.

In computer system all the peripherals are connected to microprocessor through Bus.

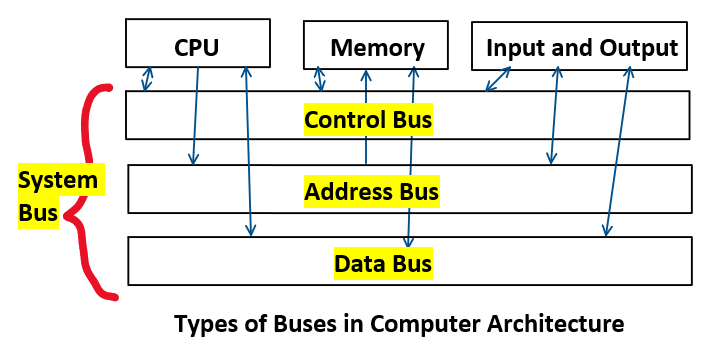

Types of Bus structure:

  1. Address bus
  2. Data bus
  3. Control bus

Data Bus:

  1. Data bus carry the data.
  2. Data bus is a bidirectional bus.
  3. Data bus fetch the instructions from memory.
  4. Data bus used to store the result of an instruction into memory.
  5. Data bus carry commands to an I/O device controller or port.
  6. Data bus carry data from a device controller or port.
  7. Data bus issue data to a device controller or port.

Address Bus:

  1. Address bus carry the memory address while reading from writing into memory.
  2. Address bus caary I/O post address or device address from I/O port.
  3. In uni-directional address bu only the CPU could  send address and other units could not address the microprocessor.
  4. Now a days computers are haing bi-directional address bus.


Control Bus:

Different types of control signals are used in a bus:

  1. Memory Read: This signal, is issued by the CPU or DMA controller when performing  a read operation with the memory.
  2. MemoryWrite: This signal isissued by the CPU or DMAcontroller when performing  a write operation with the memory.
  3. I/O Read: This signal isissued by the CPU when it is reading from an input port.
  4. I/O Write: This signal is issued by the CPU when writing into an output port.
  5. Ready: The ready is an input signal to the CPU generated in order to synchronize the  show memory or I/O ports with the fast CPU.

Expansion Bus: If your computer has expansion slots, there’s an expansion bus. Messages and information pass between your computer and the add-in boards you plug in over the expansion bus.

Although this is a bit confusing, these different buses are sometimes together called simply “the bus.” A user can think of the computer’s “bus” as one unit made up of three parts: data, address, and control, even though the three electrical pathways do not run along each other (and therefore don’t really form a single “unit”) within the computer.

There are different sizes, or widths of data buses found in computers today. A data bus’ width is measured by the number of bits that can travel on it at once. The speed at which its bus can transmit words, that is, its bus BANDWIDTH, crucially determines the speed of any digital device. One way to make a bus faster is to increase its width;

for example a 16-bit bus can transmit two 8-bit words at once, ‘side-by-side’, and so carries 8-bit data twice as fast as an 8-bit bus can. A computer’s CPU will typically contain several buses, often of differing widths, that connect its various subunits. It is common for modern CPUs to use on-chip buses that are wider than the bus they use to communicate with external devices such as memory, and the speed difference between on- and off-chip operations must then be bridged by keeping a reservoir of temporary data in a CACHE. For example many of the Pentium class of processors use 256 bits for their fastest on-chip buses, but only 64 bits for external links.

An 8-bit bus carries data along 8 parallel lines. A 16-bit bus, also called ISA (Industry Standard Architecture), carries data along 16 lines. A 32-bit bus, classified as EISA (Enhanced Industry Standard Architecture) or MCA (Micro Channel Architecture), can carry data along 32 lines.

The speed at which buses conduct signals is measured in megahertz (Mhz). Typical PCs today run at speeds between 20 and 65Mhz. Also see CPU, Expansion Card, Memory, Motherboard, RAM, ROM, and System Unit.


How Does Computer Bus Work?

A bus transfers electrical signals from one place to another. An actual bus appears as an endless amount of etched copper circuits on the motherboard’s surface. The bus is connected to the CPU through the Bus Interface Unit.

Data travels between the CPU and memory along the data bus. The location (address) of that data is carried along the address bus. A clock signal which keeps everything in synch travels along the control bus.

The clock acts like a traffic light for all the PC’s components; the “green light” goes on with each clock tick. A PC’s clock can “tick” anywhere from 20 to 65 million times per second, which makes it seem like a computer is really fast. But since each task (such as saving a file) is made up of several programmed instructions, and each of those instructions takes several clock cycles to carry out, a person sometimes has to sit and wait for the computer to catch up.
